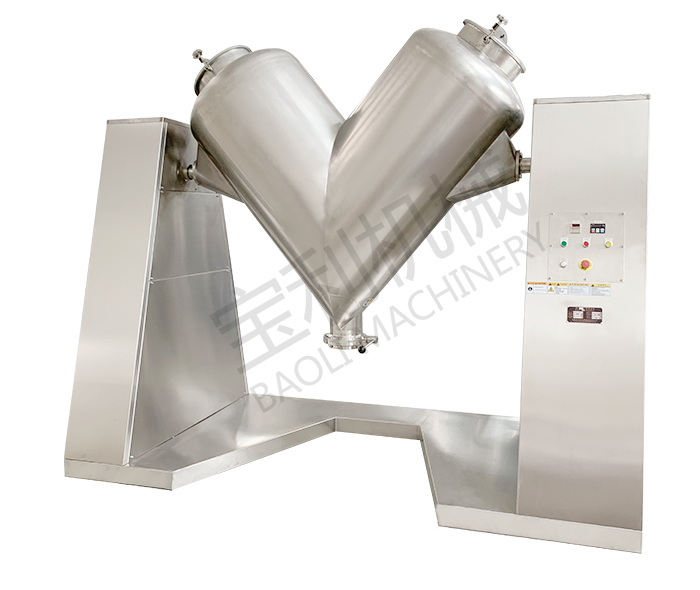

JB Series V-type Mixing Machine

Main Usage:
The mixer is used mixing of dry guanule materials for pharmacy or other relative industries.

Specialty:
Unique structure of mixing cylinder, high mixing effciency,free of dead corner,and even mixing.

Main Usage:
The mixer is used mixing of dry guanule materials for pharmacy or other relative industries.

Specialty:
Unique structure of mixing cylinder, high mixing effciency,free of dead corner,and even mixing.

Model	Main Structural Dimensions(mm)							Capacity	Maximum mixing amount	speed	Machine weight	Total power
Model	L	W1	W2	H1	H2	H3	DN	L	KG	Rpm/min	KG	KW
JB-180	1780	800	1220	1700	650	1870	150	180	90	3-12	300	1.5
JB-300	1900	900	1450	1850	650	2100	150	300	150	3-12	500	2.2
JB-500	2500	1220	1600	2250	650	2250	200	500	250	3-12	800	3
JB-1000	3050	1650	2190	2500	650	2840	200	1000	500	3-12	1200	4
JB-1500	3350	1650	2350	2980	650	3000	200	1500	750	3-12	1500	5.5
JB-2000	3800	1900	2600	3050	650	3250	200	2000	1000	3-12	1900	7.5
JB-2500	3990	1900	2850	3200	650	3500	250	2500	1250	3-12	2400	11
JB-3000	4650	2200	3050	3400	650	3700	250	3000	1500	3-12	3100	15
JB-4000	4950	2200	3250	3600	650	3900	250	4000	2000	2-8	4200	18.5
