Main uses
This machine is suitable for pharmaceutical, chemical, food and other industries. It is a complete set of equipment before the micro grinding process. It is not limited by the viscosity, hardness, softness and fiber of materials. It can crush any material well.
working principle

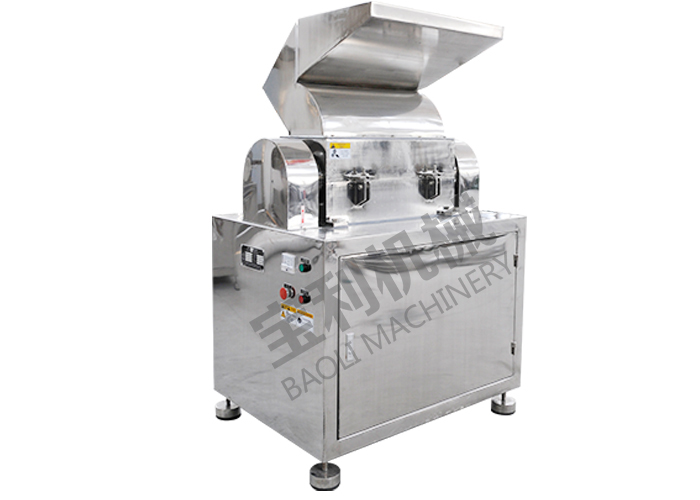

The machine is of horizontal crushing structure. The material enters into the crushing chamber from the hopper. The material is crushed by the impact and shearing of the rotary knife and the fixed knife. The material flows to the outlet automatically under the action of the rotating centrifugal force. The whole machine is made of stainless steel with simple structure, convenient cleaning and low noise. At present, it is an ideal equipment for coarse grinding.
| 型号 | 主要结构尺寸(mm) | 生产能力 | 进料粒度 | 出料目数 | 主轴转速 | 机器重量 | 总功率 | |||
| L | W | H1 | H2 | Kg/H | mm | mm | rpm | Kg | KW | |
| JB-200 | 580 | 560(900) | 1500 | 500(550) | 50-200 | ≤100 | 0.5-20 | 780 | 220 | 3 |
| JB-300 | 680 | 560(1100) | 1500 | 500(550) | 80-300 | ≤100 | 0.5-20 | 780 | 300 | 4 |
| JB-400 | 780 | 560(1200) | 1500 | 500(550) | 100-500 | ≤100 | 0.5-20 | 780 | 420 | 5.5 |
| JB-500 | 880 | 560(1200) | 1500 | 500(550) | 120-700 | ≤100 | 0.5-20 | 780 | 580 | 7.5 |
| JB-600 | 980 | 560(1300) | 1500 | 500(550) | 150-1000 | ≤100 | 0.5-20 | 780 | 750 | 11 |
