JB Series Trough Type Mixing machine

Need Help?

Speak with a human to filling out a form? call corporate office and we will connect you with a team member who can help.

+86-13812119520

Detailed description

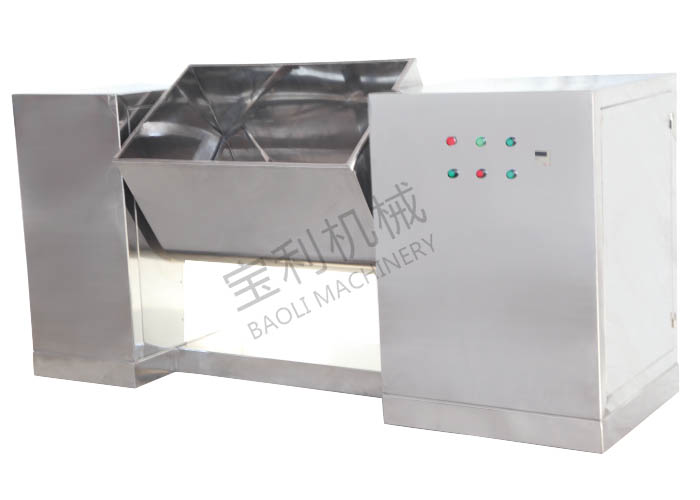

JB Series Trough Type Mixing machine

JB Series Trough Type Mixing machine

Main Usage:
It’s suitable for mixing power or paste in the pharmaceutical,chemical,food and other industries.

Specialty:
The Stype impeller rotating by mechanical rotation, push the material mixing well.

Main Usage:
It’s suitable for mixing power or paste in the pharmaceutical,chemical,food and other industries.

Specialty:
The Stype impeller rotating by mechanical rotation, push the material mixing well.

Technical parameter

Model

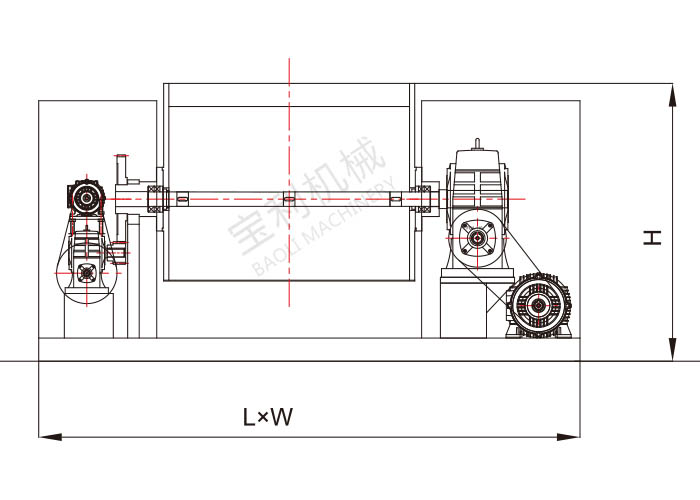

Main Structural Dimensions(mm)

Volume

Max loading

Speed

Machine weight

power1

power2

L W H L KG Rpm/min Kg KW KW
JB-100 1400 580 1000 100 50 24 220 2.2 0.75
JB-150 2000 630 1150 150 75 24 300 3 0.75
JB-200 2300 750 1250 200 100 24 400 4 1.1
JB-300 2700 850 1350 300 150 24 600 5.5 1.5
JB-500 2750 800 1400 500 250 24 800 7.5 2.2
JB-1000 3350 1100 1550 1000 500 24 1400 15 3
