JB Series Three-Dimensional Swing Mixing Machine

Need Help?

Speak with a human to filling out a form? call corporate office and we will connect you with a team member who can help.

+86-13812119520

Detailed description

JB Series Three-Dimensional Swing Mixing Machine

JB Series Three-Dimensional Swing Mixing Machine

Main Usage:
This machine is widely applied for the mixing of powder material by pharmacy,chemical,and foodstuff industries,as well as for the quick and even mixing of various materials in different granules size and gravity.

Specialty:
With its unique three-dimension swing,parallel moving,and rolling methods,this mixer can ganerate a strong pulse movement to push forward and to mix the target materials contiuously.The excellent mixing effects are the result of its changeable vortex movement that Possesses the energy grads inside. It also has the merits of smooth running,low noisem,high loading quotiety,and short mixing time as well.

Main Usage:
This machine is widely applied for the mixing of powder material by pharmacy,chemical,and foodstuff industries,as well as for the quick and even mixing of various materials in different granules size and gravity.



Specialty:
With its unique three-dimension swing,parallel moving,and rolling methods,this mixer can ganerate a strong pulse movement to push forward and to mix the target materials contiuously.The excellent mixing effects are the result of its changeable vortex movement that Possesses the energy grads inside. It also has the merits of smooth running,low noisem,high loading quotiety,and short mixing time as well.

Technical parameter

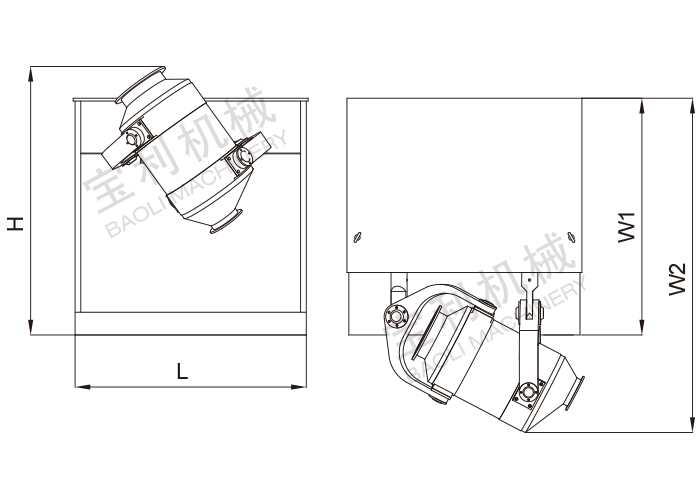

Model Main Structural Dimensions(mm) Volume Max loading Speed Machine weight Total power
L W1 W2 H L KG Rpm/min Kg KW
JB-50 1000 850 1400 1200 50 25 3-15 250 1.1
JB-100 1250 1250 1775 1600 100 50 3-12 600 2.2
JB-200 1400 1450 1800 1750 200 100 3-12 900 2.2
JB-400 1650 1600 2235 1950 400 200 3-12 1200 4
JB-600 1750 1600 2435 2160 600 300 3-12 1600 5.5
JB-800 2000 1900 2690 2550 800 400 3-12 2000 7.5
JB-1000 2100 1950 2805 2640 1000 500 3-10 2200 11
JB-1200 2200 2200 2950 2750 1200 600 3-8 2500 11
JB-1500 2250 2500 3225 2930 1500 750 3-8 2900 15
