Detailed description

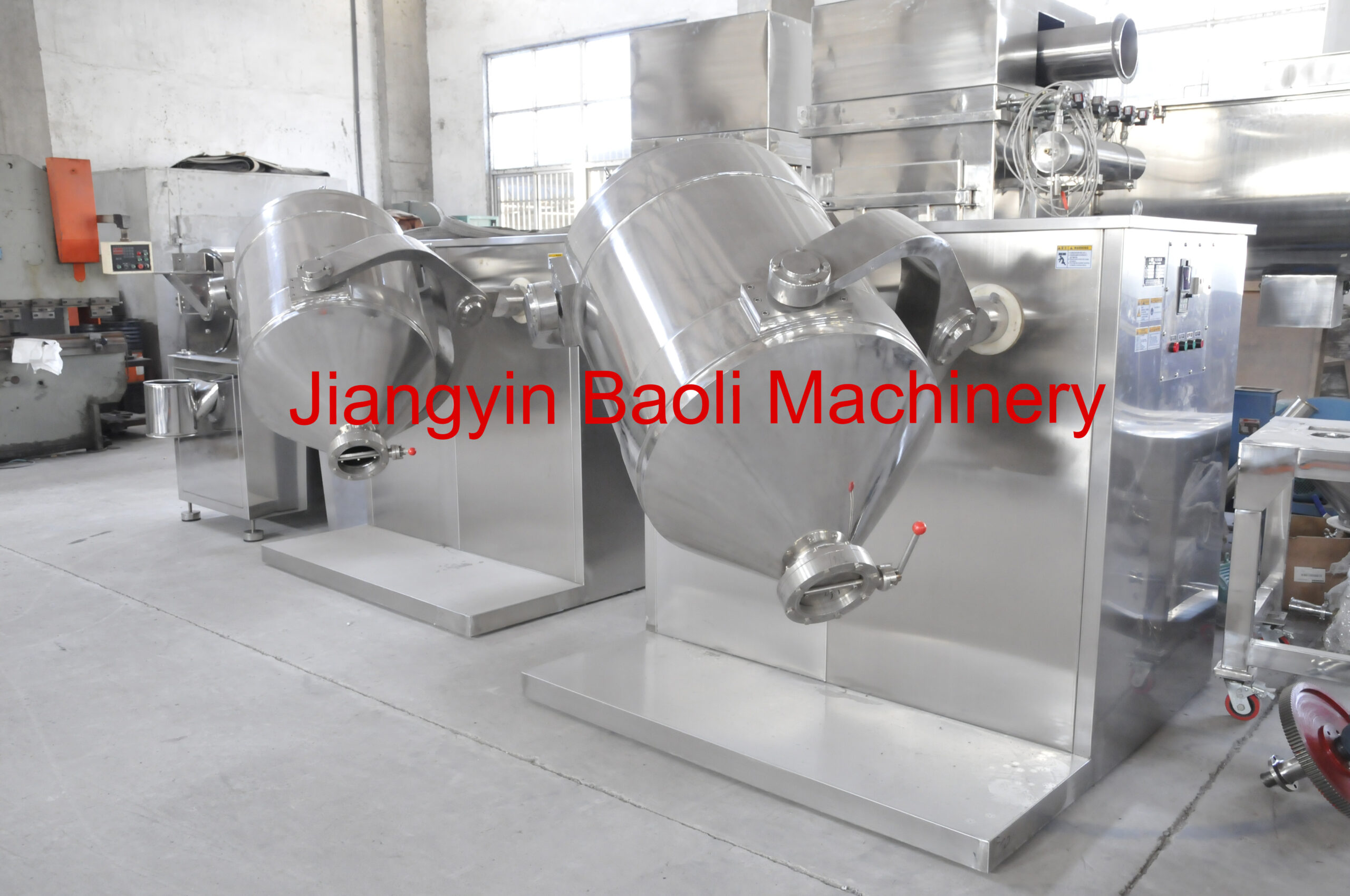

The three-dimensional motion mixer is composed of a frame, a drive system, a universal rocker arm organization, a universal rocker arm organization, a mixing barrel and other structures. These structures have their own characteristics. It can add materials to touch the surface area to promote chemical reactions. It can also accelerate the physical changes. Compared with other mixers, what are the advantages of the three-dimensional motion mixer? Below, I will briefly introduce you.

The structural characteristics of the three-dimensional motion mixer:

1, Base

The base of the machine is made of profiled steel, with a stainless steel mirror panel on the outside. The base structure is reasonable, which can effectively stabilize the whole machine. Fully meet the GMP requirements for pharmaceutical production.

2, Drive system

The drive system of this machine consists of a motor, a transmission deceleration system and a control system. Transmission deceleration system, simple design, stable and reliable transmission. The control system adopts digital display time relay, which can set the mixing time arbitrarily, display the time and automatically shut down.

3. Universal rocker organization

In order to enable the mixing barrel to perform messy translation, rolling and rocking motions in the three-dimensional space, the machine is designed with a common active and driven double shaft and a Y-shaped universal rocker arm at the two shaft ends; the driven shaft is designed to be flexible. , Make the movement of the machine more sensitive and concise; debugging and repairing more concise.

4, Mixing barrel

The mixing barrel is made of high-quality stainless steel, and its inner and outer walls are mirror-polished. The barrel has good air tightness, smooth and bright, no dead corners, no residue, and easy to clean.

​The material inlet is sealed with a clamp flange, which is easy to operate and has good air tightness. The discharging end uses a uniquely designed eccentric cone. The asymmetrical design is more conducive to the uniform mixing of the materials. When discharging, the discharging port is at the lowest position of the mixing container, and the materials are discharged together.

Technical parameter
