Main Usage:
This machie is developed with the method of mixed powder jetting, which is widely applied for the materials grinding for the trades of pharmaceutics,chemical,and foodstuff etc.
Specialty:
This machine has a simple structure and is easy to be installed and dismantled and cleaned,with the features of stable running,convenient moving,low nosise,and high grinding efficiency etc.
Working Method:
This machine is a high speed running one. The target material is smashed by the cutting and grinding of high speed knifes,which the figure and size of knifes can be selected in accordance with diferent material and the size of granules can be acquired by screen changing or speed-regulating.
Main Usage:
This machie is developed with the method of mixed powder jetting, which is widely applied for the materials grinding for the trades of pharmaceutics,chemical,and foodstuff etc.
Specialty:
This machine has a simple structure and is easy to be installed and dismantled and cleaned,with the features of stable running,convenient moving,low nosise,and high grinding efficiency etc.
Working Method:
This machine is a high speed running one. The target material is smashed by the cutting and grinding of high speed knifes,which the figure and size of knifes can be selected in accordance with diferent material and the size of granules can be acquired by screen changing or speed-regulating.

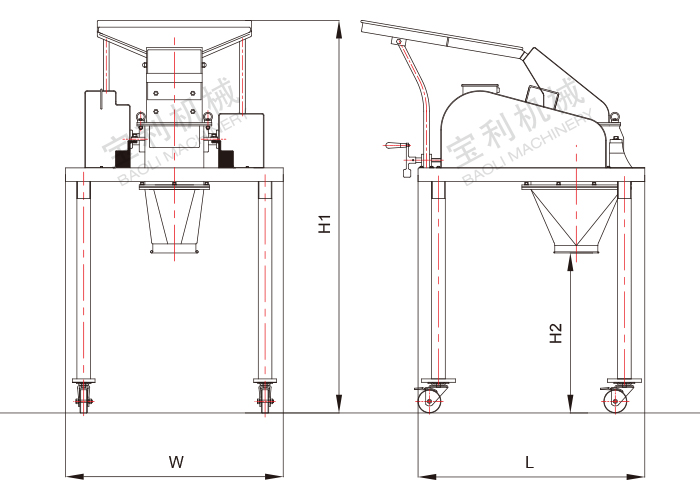

| Model | Main Structural Dimensions(mm) | Capacity | Input Particle Size | Output Particle Size | Machine weight | Total power | |||
| L | W | H1 | H2 | Kg/H | mm | mesh | Kg | KW | |
| JB-8 | 1050 | 600 | 1600 | 600 | 10-100 | <10 | 5-80 | 150 | 3 |
| JB-16 | 1100 | 860 | 1600 | 600 | 30-200 | <10 | 5-80 | 250 | 7.5 |
| JB-32 | 1280 | 950 | 1600 | 600 | 50-400 | <15 | 5-80 | 400 | 11 |
| JB-48 | 1380 | 1200 | 1750 | 600 | 100-600 | <15 | 5-80 | 600 | 18.5 |
